Titanium Tools are the ultimate solution for dross removal in wave soldering offering unmatched performance and longevity
Find Out More

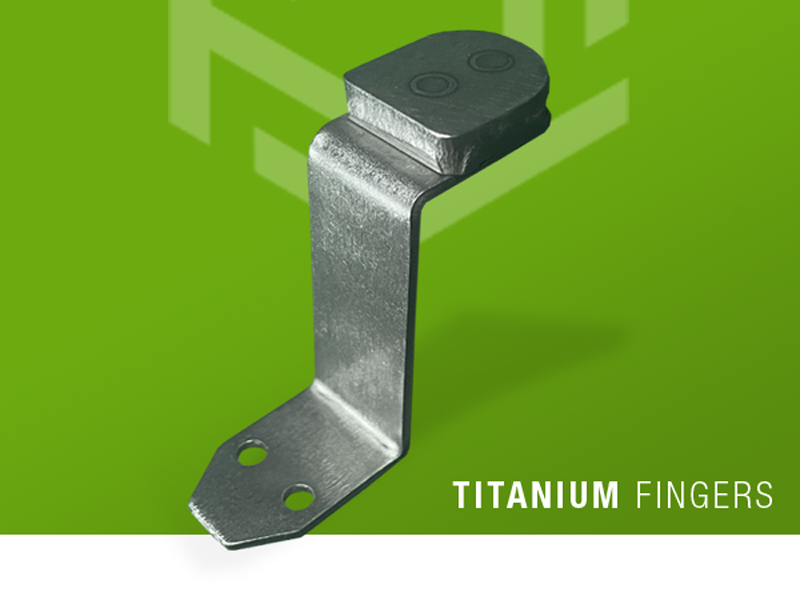

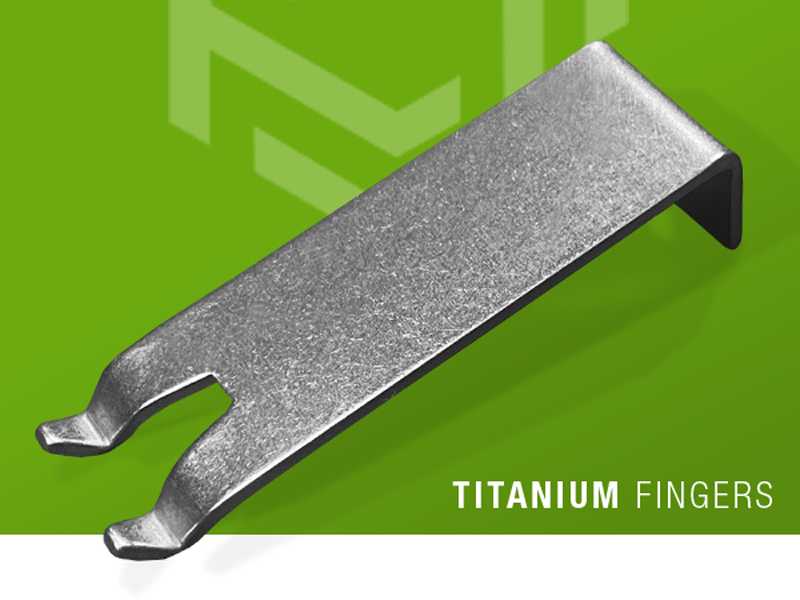

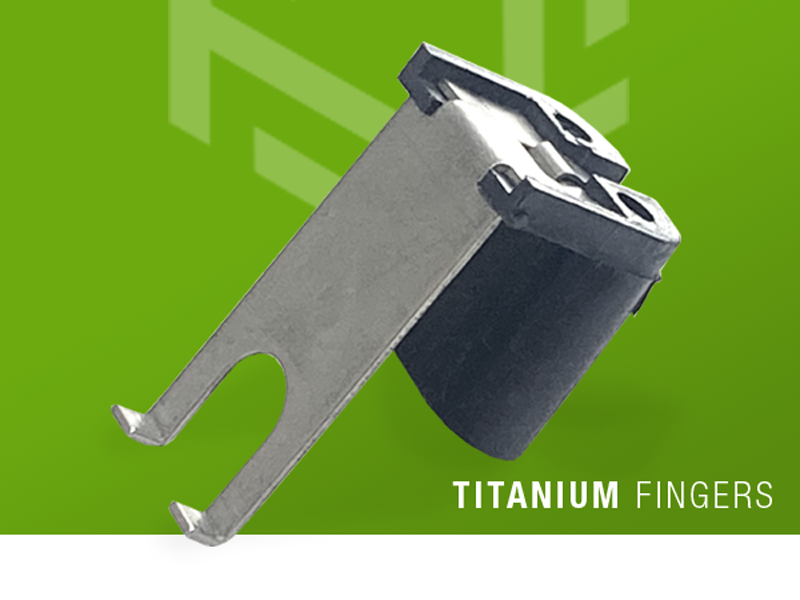

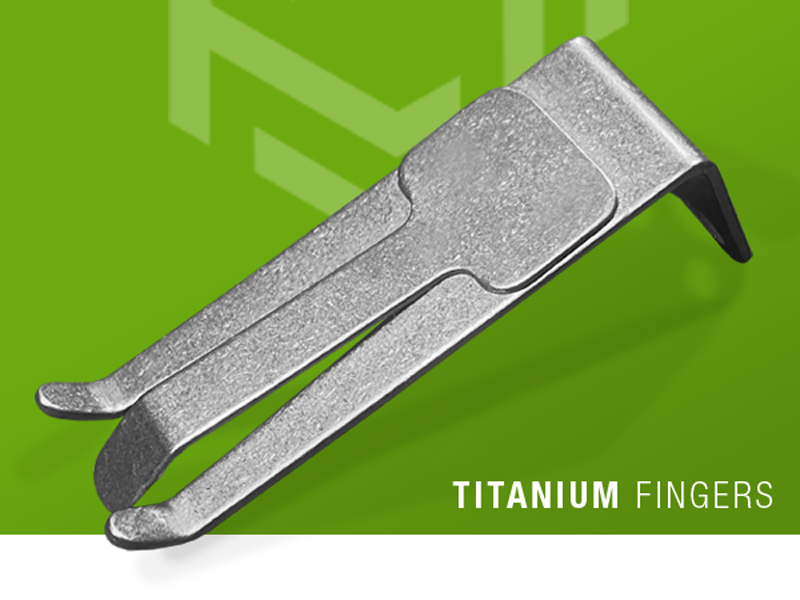

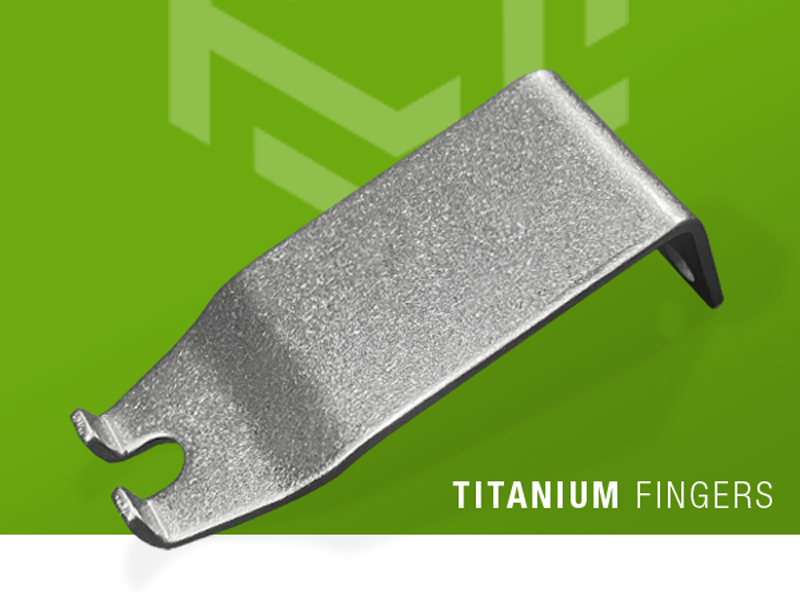

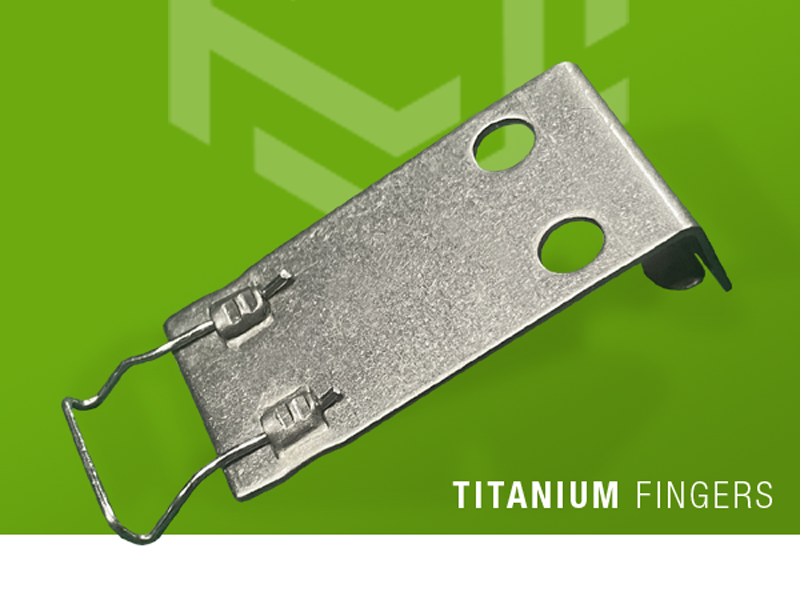

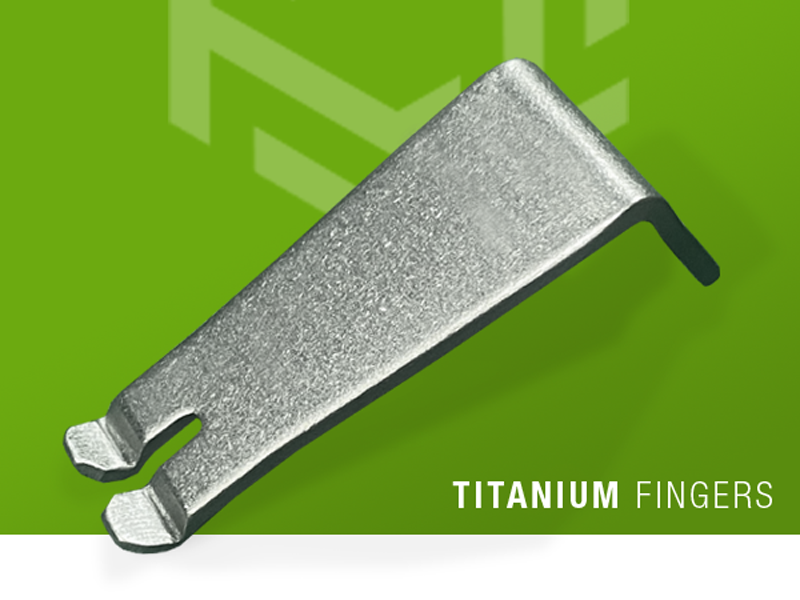

Compatible Titanium Fingers
Compatible Titanium Fingers
Why Titanium for Wave Solder Fingers?
Titanium is widely regarded as the best material for wave solder machine fingers due to its unique combination of properties that make it highly resistant to the harsh conditions of the wave soldering process. Here’s why titanium is the preferred choice:
-
Solder Resistance.
-
Corrosion-Free.
-
Strength and Lightness.
-
Cost-Effective.
-
Shape Retention.
Titanium Fingers
Don't take our word for it, more Reasons why
1. High Temperature Resistance
Wave soldering involves molten solder, typically at 260–270°C (500–518°F). Titanium has a high melting point (1,668°C or 3,034°F) and excellent heat resistance, ensuring the fingers retain their shape and structural integrity without warping or degrading over time. This makes titanium more durable compared to materials like stainless steel or aluminum, which can warp or soften under repeated thermal stress.
2. Exceptional Corrosion Resistance
Molten solder contains aggressive flux chemicals that can cause corrosion. Titanium offers excellent resistance to oxidation and chemical corrosion, ensuring the fingers remain intact and functional over long periods. This resistance reduces the need for frequent replacements, lowering maintenance costs.
3. Non-Wettable by Solder
One of the key advantages of titanium is its non-wettability by solder. Unlike other metals, titanium does not bond with molten solder, preventing solder build-up or bridging on the fingers. This ensures clean and consistent board transport, reducing solder defects and enhancing the quality of the solder joints.
4. Lightweight and Strong
Titanium has a high strength-to-weight ratio, making it both light and durable. Lighter wave solder fingers reduce the overall weight on the conveyor system, which improves the machine's efficiency and reduces wear on mechanical components.
5. Minimal Contamination
Titanium is chemically inert, making it ideal for environments where material purity is crucial. It does not introduce impurities into the solder bath, ensuring consistent solder quality.
6. Long-Term Cost Efficiency
While titanium fingers have a higher initial cost, their durability and resistance to wear and corrosion make them a cost-effective solution in the long run. They require less frequent replacement, reducing downtime and maintenance expenses.
7. Dimensional Stability
Titanium maintains its dimensional accuracy even under high temperatures, preventing deformation. This stability ensures that PCB alignment during wave soldering remains precise, reducing soldering defects.
8. Titanium Fingers Limited
Over 50 years Combined Knowledge. Highest Grade Titanium Used. High standards of design & Manufacturing. Fast Turn-around. Great Customer Service. Good Communication. First Class After Sales Service.
Save Solder / Save Money

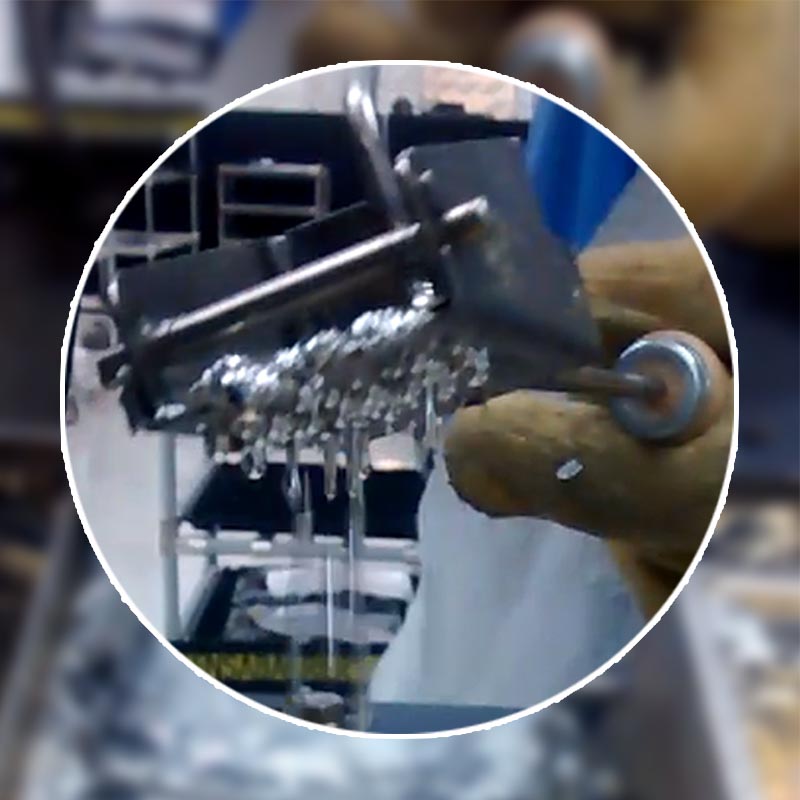

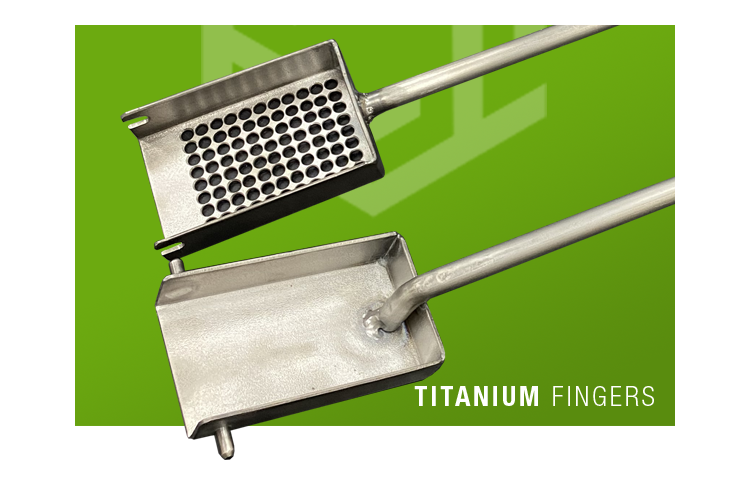

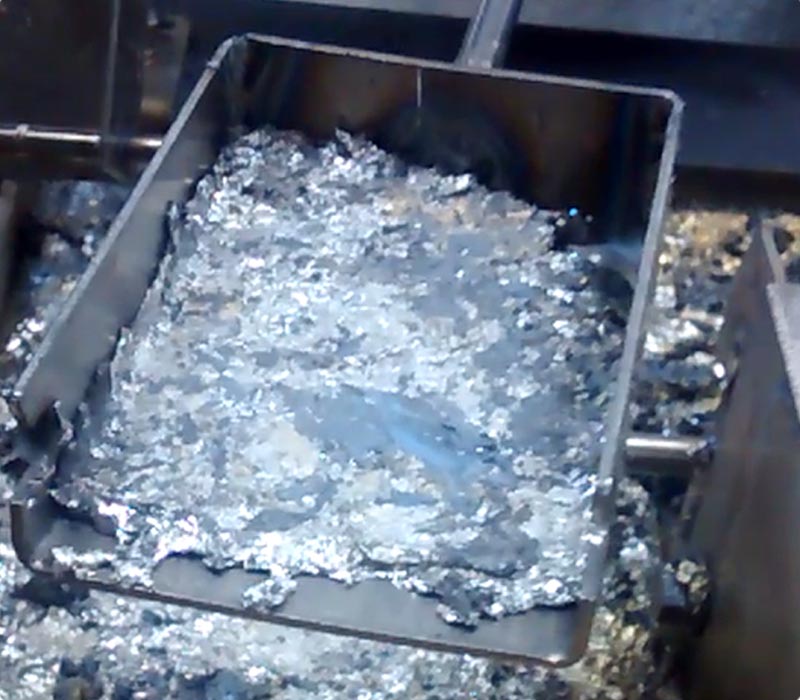

Titanium Dross Removal Tools
Our Solder Recovery Tools are made from the highest grade of Titanium Material, which allows for added strength and Solder does NOT adhere to our Titanium Tools. Easy to use, long reach rods, with corrosion resistance.
The worlds first Titanium Dross Removal Tool.
Save Solder / Save Money

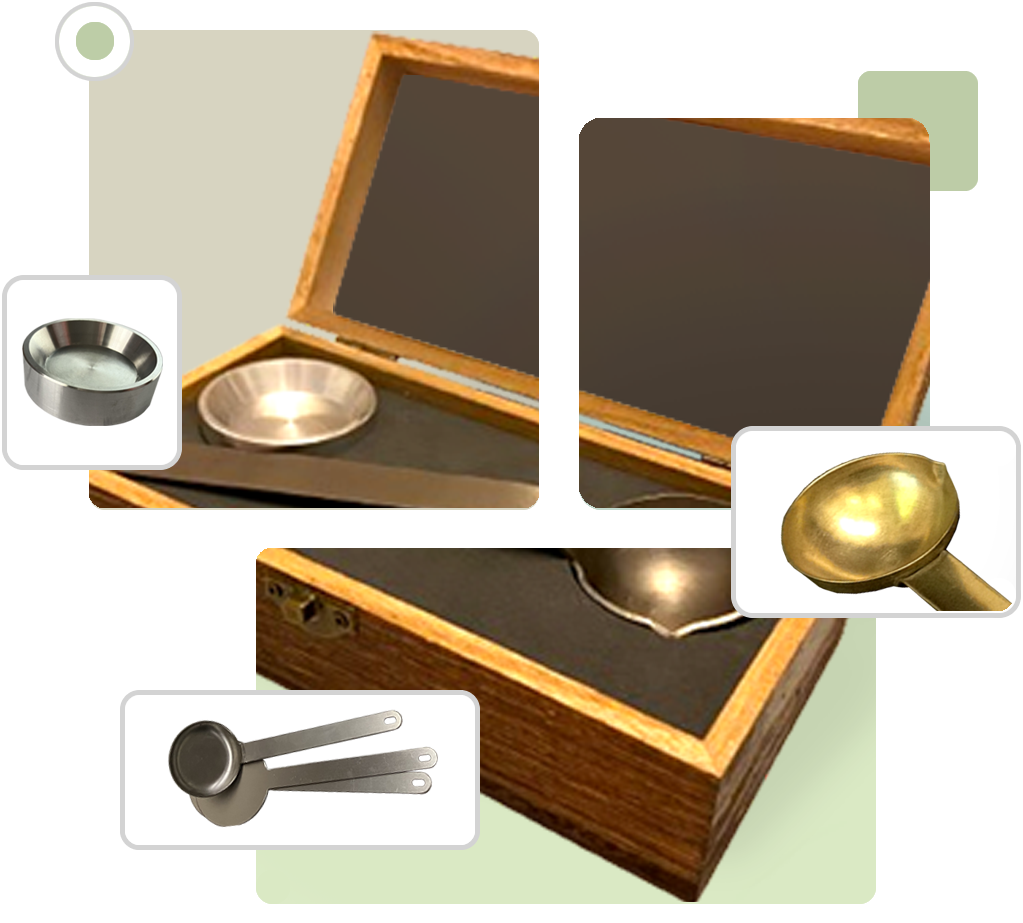

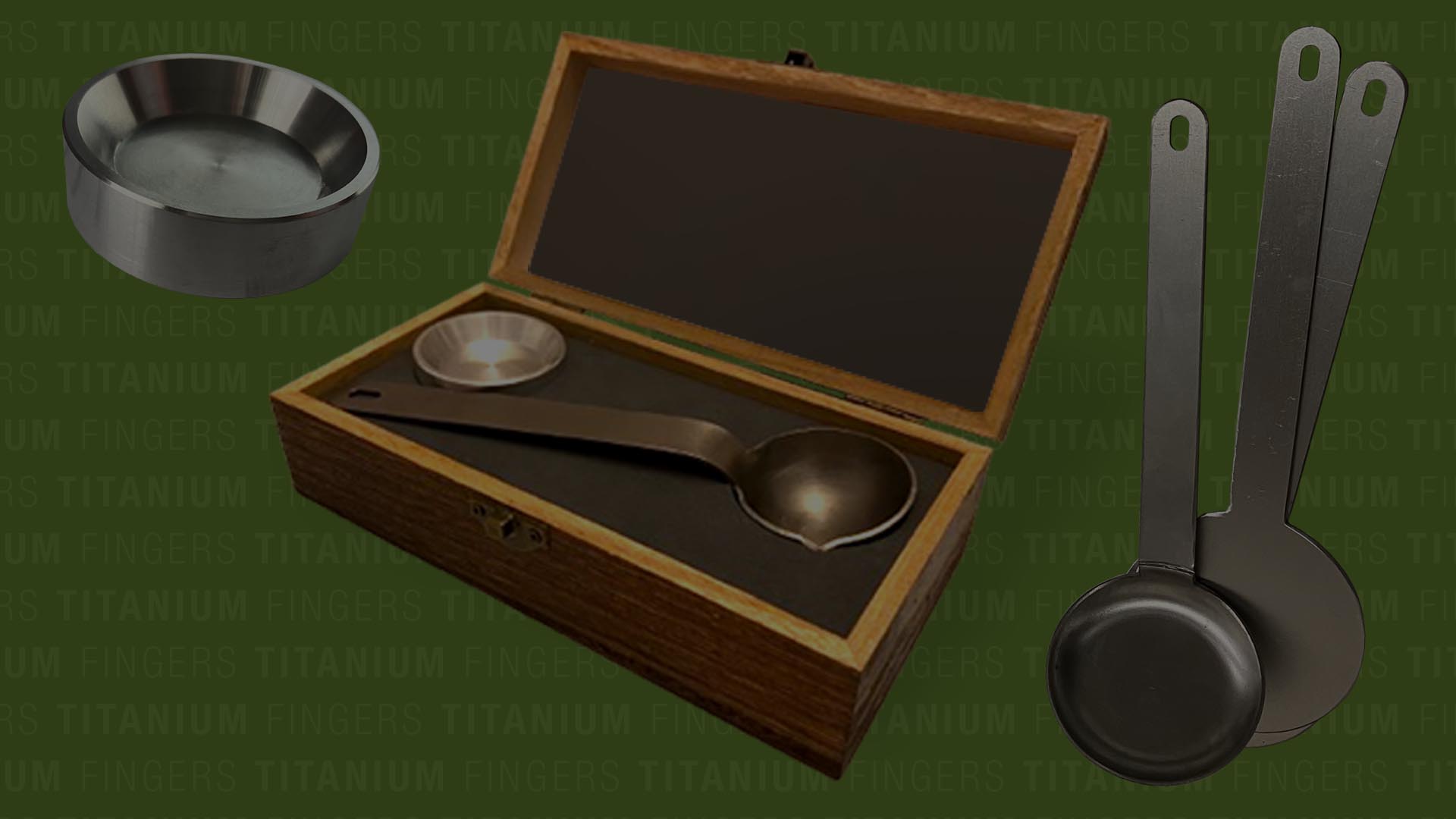

Solder Analysis Kit
-
Solder baths or dipping pots can very easily become contaminated, Solder Analysis can you to identify containments and reduce their effects. To assist in the collection of solder for your Solder Analysis we can provide an Analysis kit.
-
This includes a ladle for the collection of the solder and a mould for the sample to set in. The kit is designed to make solder collection simple and efficient.

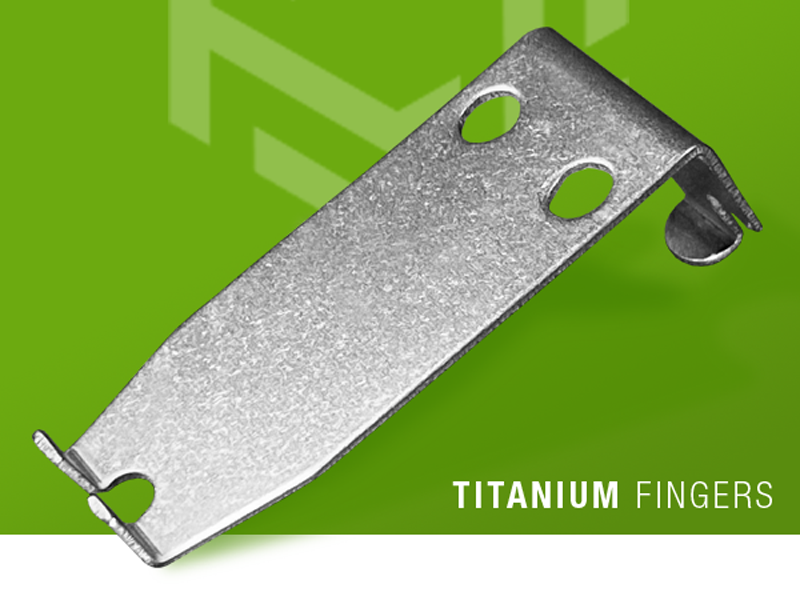

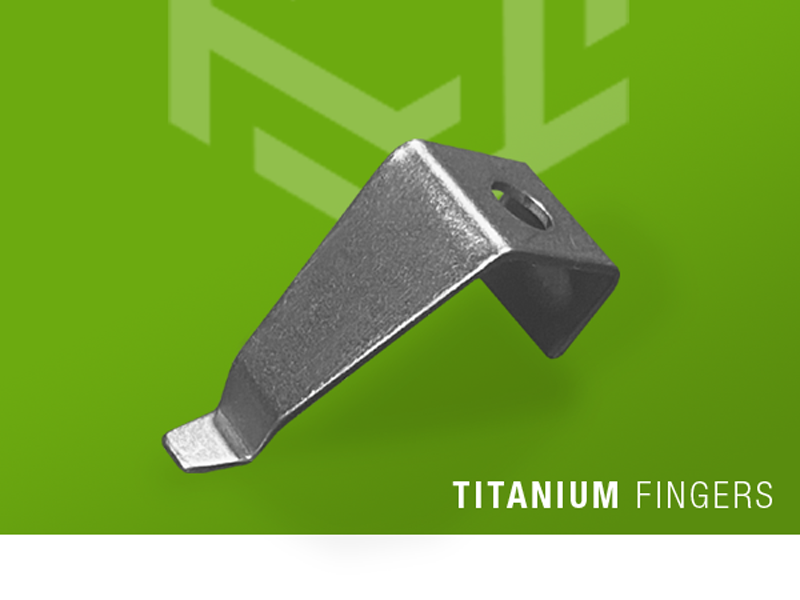

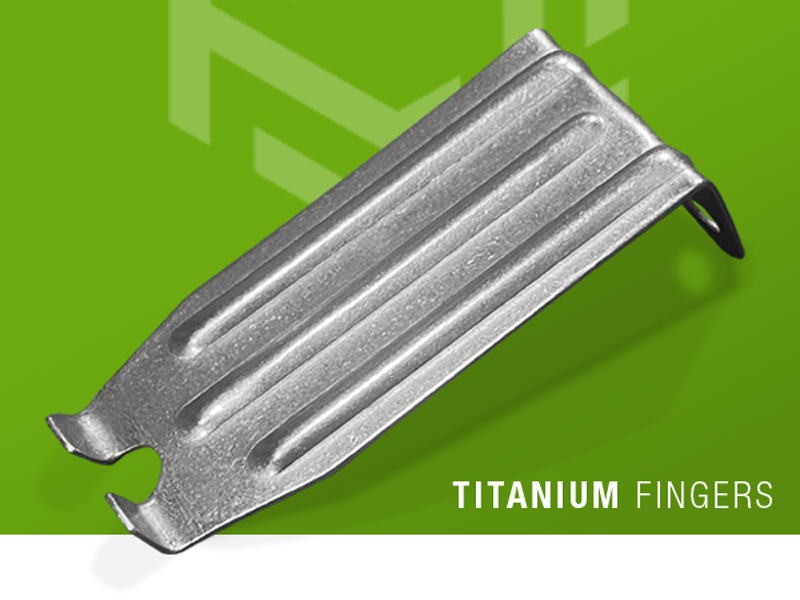

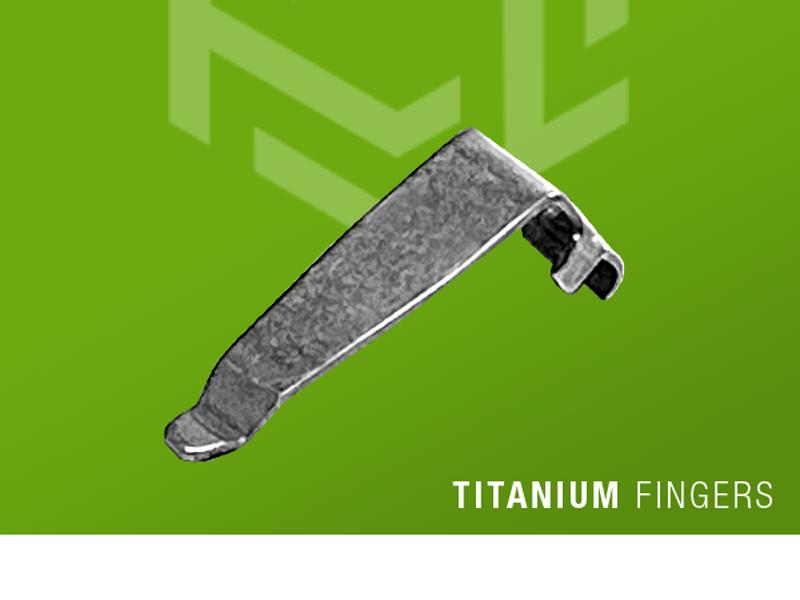

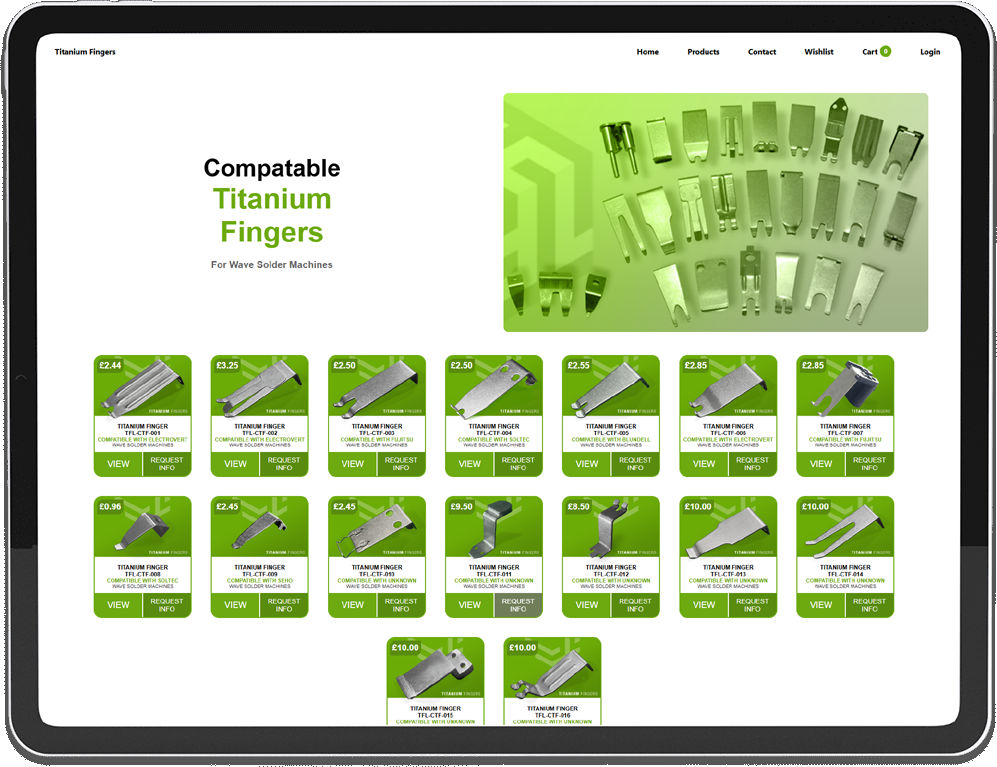

Our Compatible Titanium Fingers
Compatible with All Wave Solder Machines
Innovation
Creating & Modifying Products to Customer Specifications.
Experience
With Over 50 years of Combined Knowledge within Our Team.
Quality
Using the Highest Grade of Titanium Material for use in Our Products.
Customer-First
We Pride Ourselves for Our Excellant Customer Service & Support.
Our Strengths
Why do people choose Titanium Fingers?
We offer a comprehensive range of titanium products and services in particularly for the printed circuit board soldering process industry and the food industry, such companies including Sony, TT Electronics, Axiom, TMI (France, Turkey), CIDP (Poland, Italy, Spain)
Our fabrication welding and general engineer department specialising in the manufacturer and fitting of many products. We are experts with stainless steel, aluminium, mid steel, copper and titanium machining and fabrication.
1
Browse Our Company Website
Feel free to visit our Company Website at titaniumfingers.com, browse through are extensive Product Range from Titanium Fingers, Cleaning Tools, Solder Recovery, Dross Removal Tools and Solder Testing Kits.
2
Place Order / Customise / Modify
See a product you like, add it to your Purchase Order and Submit it to us, you will have to create a business account in order to place an order, however its made easy, follow instructions on website.
3
Received Order / Receive Support
You will receive a live order update as its being Process, Produced and Packaged. On Receipt of your Order we are available to Support you in anyway we can.
2.6k
Items Manufacture and Shipped to Our Customers
94%
Items Shipped to Our Customers On time.
9.97
Our Customer Satisfaction / After Sales Service.
Bespoke Design & Development
Bespoke Design & Development
We offer a comprehensive range of titanium products and services, particularly for the printed circuit board soldering process industry and the food industry. Our clients include renowned companies such as Sony, TT Electronics, Axiom, TMI (France, Turkey), and CIDP (Poland, Italy, Spain).
CALL
We Create to Customer Requirements
-
We Offer a Fully Customisable Bispoke Service to Our Customers. To Create a New Product or Modify an Existing Product.
-
If you have any requirements, We are here to Help and Support Your Business

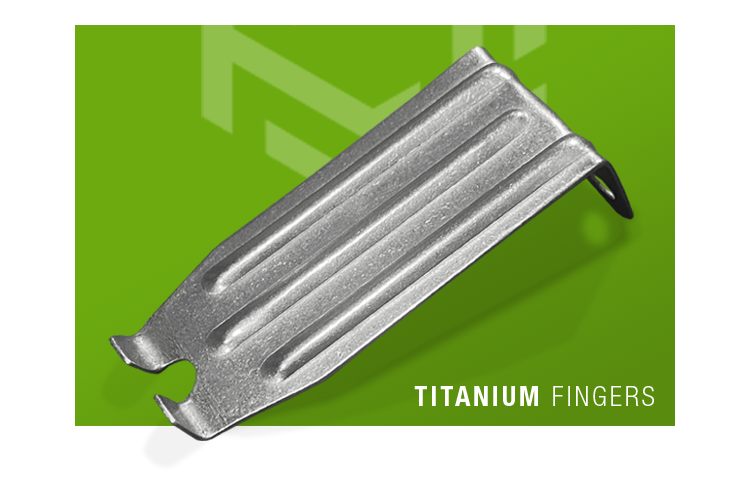

Titanium Fingers
Our Customers say that Our Custom or Compatible Titanium Wave Solder Machine Fingers are of High Standard.

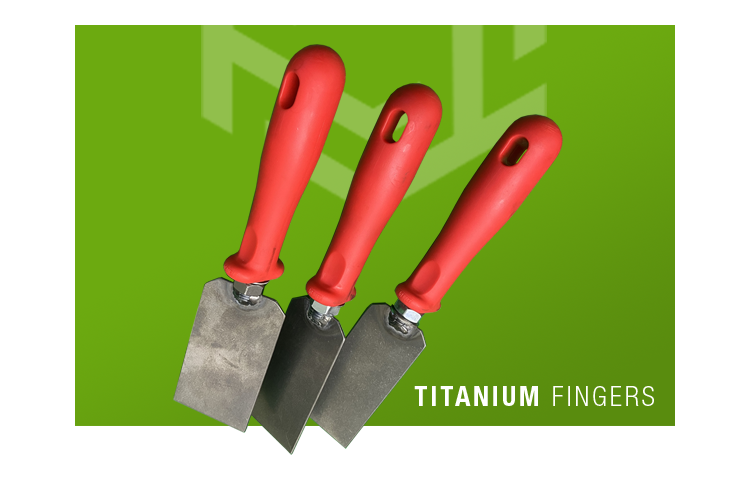

Titanium Cleaning Tools
All Our Wave Solder Machine Cleaning Tools are made from Titanium Material, Strong, Lightweight and Corrosion Free.

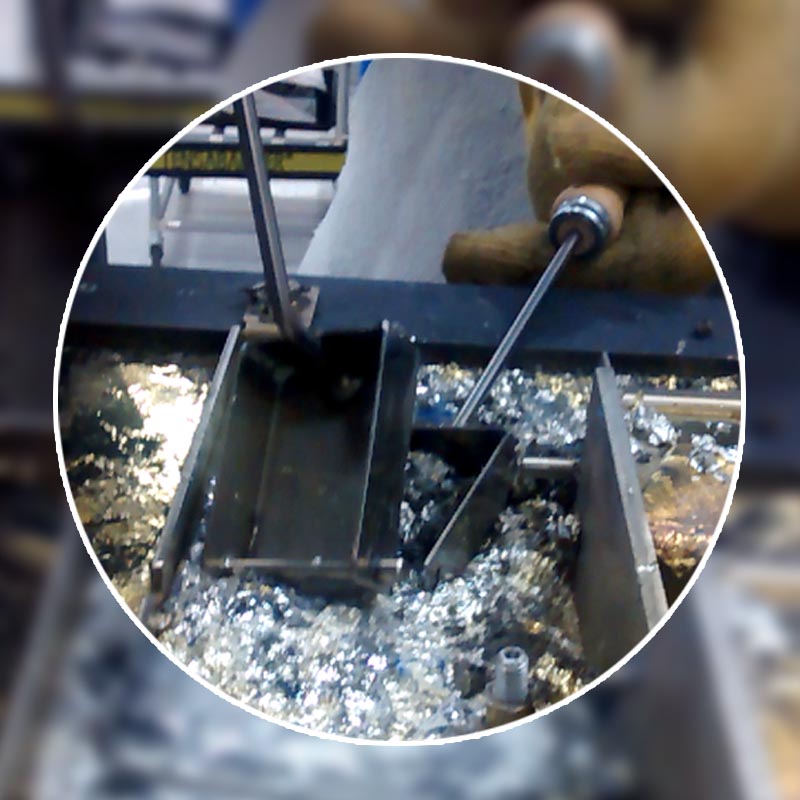

Dross Removal Tools
Removal Dross, Clean Solder, Save Solder, these can be Custom to Customer Specification, Long Reach for ease of use.
Our Happy Customers
Dont Take Our Word for it, Our Customers make this judgment.
Very Knowledgeable in Engineering
"We have been customers of Mike Emanuel of Titanium Fingers for approximately 15 years. We have found Mike to be very knowledgeable in engineering and the assembly processes used in the manufacture of Printed Circuit board assemblies. We have been very happy with the very good service Mike has given us in the past and we are happy to continue having him as a supplier."
Quick Turnaround – which beat the Manufacturers Expected Lead Time!
"I’d like to say how impressed we are with the titanium selective solder unit you manufactured for us. I’m especially grateful for the quick turnaround – which beat the manufacturers expected lead time by half. I look forward to working with you on future projects."
Impressed with the Quality of the Goods Supplied
"Just a quick note to thank you and your staff for the speedy 'turn around' of our order for the impellor and shaft for our Evolution. I have to say I was very impressed with the quality of the goods supplied. It’s great to see what I call 'proper' engineering, alive and well. Please pass my comments on to your staff, will you? The unit has been fitted and is running a treat. "
We would have NO Hesitation in Recommending!
"Just a quick line to say how delighted we are with your wave solder pallets. We were running a job at the time of their arrival and put them into action immediately. We were also very pleased with the delivery time. Thank you for your excellent service. We would have no hesitation in recommending yourselves, and you may use my details in any publicity."
A great solution for small companies.
"An augue cubilia laoreet a magna suscipit diam egestas ipsum lectus purus ipsum a primis augue auctor ultrice ligula egestas suscipit lectus gestas tempus feugiat impedit "
Excellent product and support throughout
"Etiam sapien sagittis ociis congue augue massa varius egestas ultrice varius magna tempus aliquet undo egestas and cursus suscipit"
Amazing platform, fast and effective!
"Mauris gestas magnis and sapien etiam sapien congue augue integer egestas ipsum ultrice a vitae purus congue magna ligula egestas "
Really impressed by the level of service.
"An augue cubilia laoreet a magna suscipit diam egestas ipsum lectus purus ipsum a primis augue auctor ultrice ligula egestas suscipit lectus gestas tempus feugiat impedit "
Frequently Asked Questions
Some common questions we get about Titanium Fingers Limited
Where are We Located?
Titanium Fingers Limited are Located in Wales, United Kingdom. Our Company Registered Address : Titanium Fingers Limited, Unit 15b Stradey Park, Building 52 Business Centre, Llangennech, SA14 8YP, Wales, United Kingdom.
What Can We Do?
With over 40 years of experience and expertise in the engineering and manufacturing industries, we have established a customer base both in the UK and worldwide. We offer a comprehensive range of titanium products and services, particularly for the printed circuit board soldering process industry and the food industry. Our clients include renowned companies such as Sony, TT Electronics, Axiom, TMI (France, Turkey), and CIDP (Poland, Italy, Spain).
Fabrication & Engineering?
Our fabrication welding and general engineering department specializes in the manufacture and fitting of various products. We excel in working with stainless steel, aluminium, mild steel, copper, and titanium machining and fabrication.
Company Strngth & Capability?
The strength of our company lies in our ability to design, prototype, and supply the finest quality products at the most competitive prices in the market. We pride ourselves on our speedy response and our capability to innovate and problem-solve.
What Languages Can We Support?
We do have, as part of our extencive team, the ability to speak many languages, some fluent others basic level. English, Welsh, Italian, Greek, German, South African, Portuguese. We also have access to translation apps and online support.
I have a Question?
-
Please feel free if you have any questions that we can answer for you, contact us, we are on standby to support you in anyway possible that we can.
-
Either complete our contact form on our website, or your can contact us via hello@titaniumfingers.com.
